Description

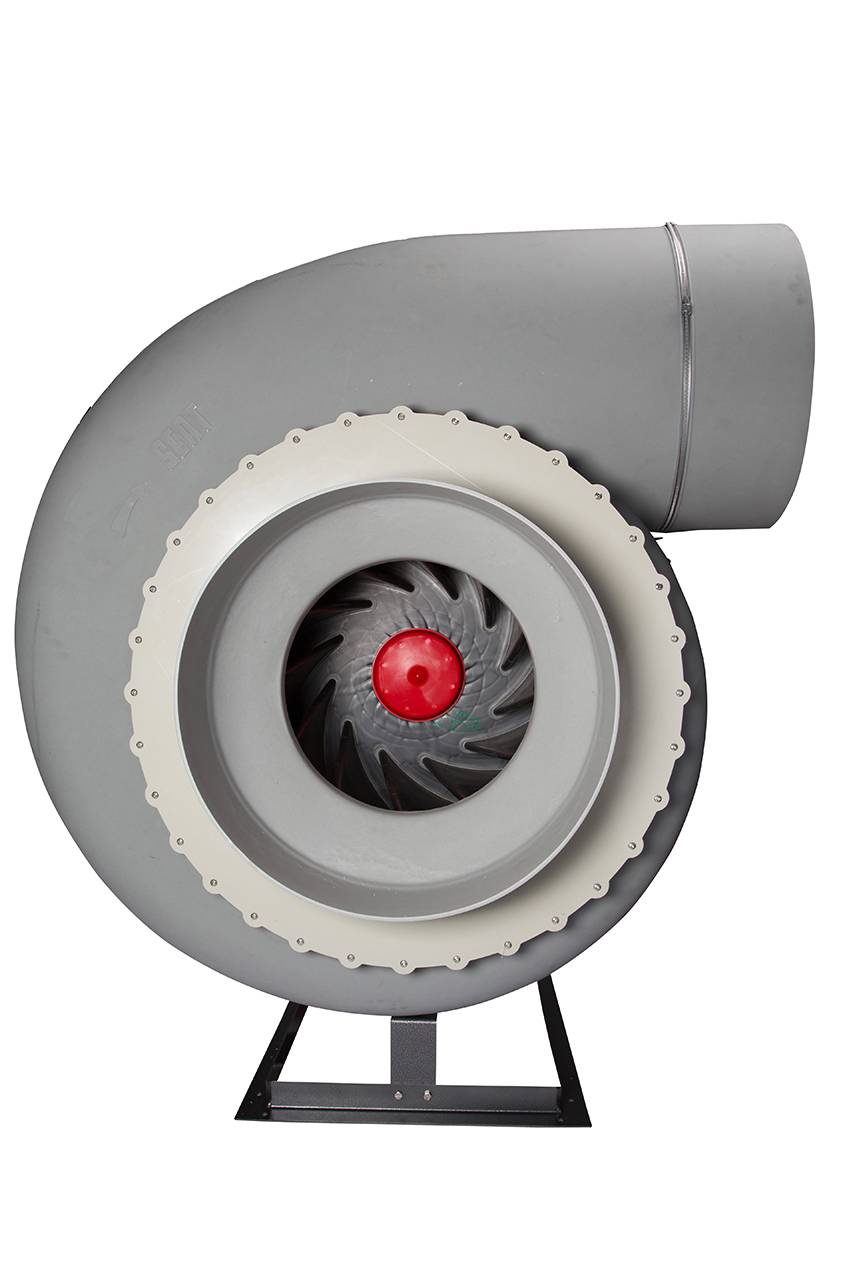

Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 15000 m3/h, the inlet dimension of 600mm and outlet of 500 mm. Backward centrifugal type impeller made of injected molded PPH with a patented process. Delivered with a protection plate around the housing, metal stand, weather protection cover and three-phase motor with a start-up by frequency inverter.
◾Airflow : 5000-15000 m3/h
◾Total pressure : 300-1800 Pa
◾Inlet : 600 mm
◾Material : polypropylene
◾Motor driving : direct
◾Motor support: metal stand only
◾ATEX : available soon
◾Motor : three-phase
Important: Start up by frequency inverter.
