Description

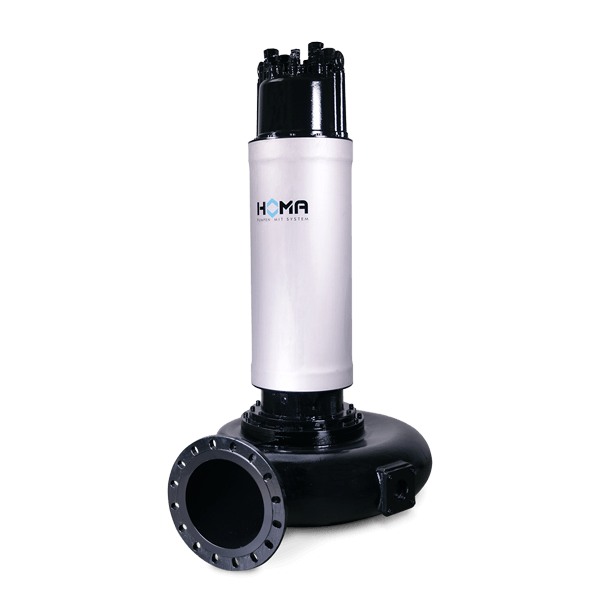

Dry well (also submersible) sewage pumps K (X) are designed for pumping sludge, effluents or surface water, including liquids containing a large proportion of solid size – 80 mm dia or fibrous matter.
Discharge: DN 200, DN 250, DN 300, DN 400, DN 500
Pump installation:
• Permanent wet well installation with base stand
• Permanent dry well installation, vertical or horizontal
Impeller design:
K, KX – enclosed two channel impeller for liquids containing impurities and sludge with solid particles.
Speed: …/4: 1470 rpm, …/ 6: 960 rpm …/8: 720 rpm, …/10 : 590 rpm, …12 : 490 rpm
Specifications:
• Maximum head – 66 m
• Maximum capacity – 4120 m3/h
• Maximum liquid temperature: 35°C, short term up to 60°C
• Materials: Cast iron pump housing and impeller.
Design / Model code:
F, G, H, R, S: Motor type
U: jacket cooled motor for dry well installation
Ex: Explosion proof, ATEX Ex II 2 G EEXd
S: Moisture monitoring in the stator housing
Equipment supplied: with 10 m of cable.
